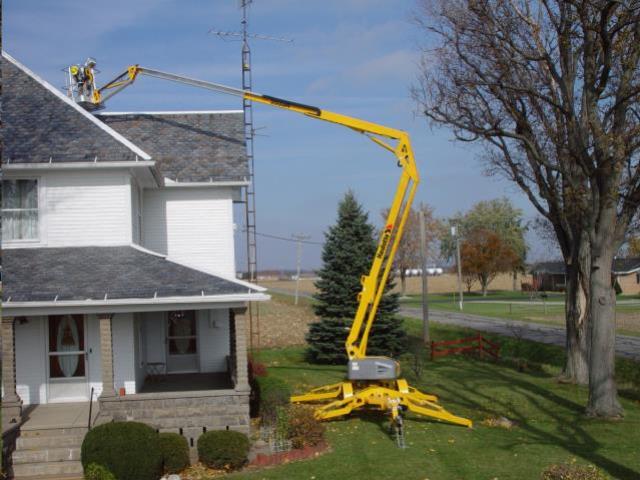

61' Man Lift Towable

Manufacturer Link: <Click Here>

Where to find 61 Man Lift Towable in Delano

Image for reference only
Actual item may look different
Click on image for larger view

Where to find 61 Man Lift Towable in Delano Where to find 61 Man Lift Towable in Delano

Click on above thumbnails for alternate view

Manufacturer: BIL-JAX

Model: 5533A DC

4 Hour: $315.00

Daily: $450.00

Weekly: $1,800.00

Quantity: for a period of
4 hour(s)   day(s)   week(s)

Additional Information

  • NOTE: OSHA REQUIRES OPERATORS TO WEAR A SAFETY HARNESS WHILE OPERATING THIS
  • Must have at least a 1/2 ton pick up truck with working light hook up to pick up lift
  • No SUV'S
  • Hydraulic outriggers and automatic leveling allow operation in under 30 seconds
  • Superior combination of industry leading capacity and outreach
  • Can be towed by a standard half-ton pickup truck - No commercial driver's license needed
  • Exceptional productivity
  • Air / water lines and 110V GFI protected power to the platform
  • Requires a 2" trailer ball
  • Surge brakes
  • 4 prong light hook up
  • Articulating Boom
  • TECHNICAL DATA

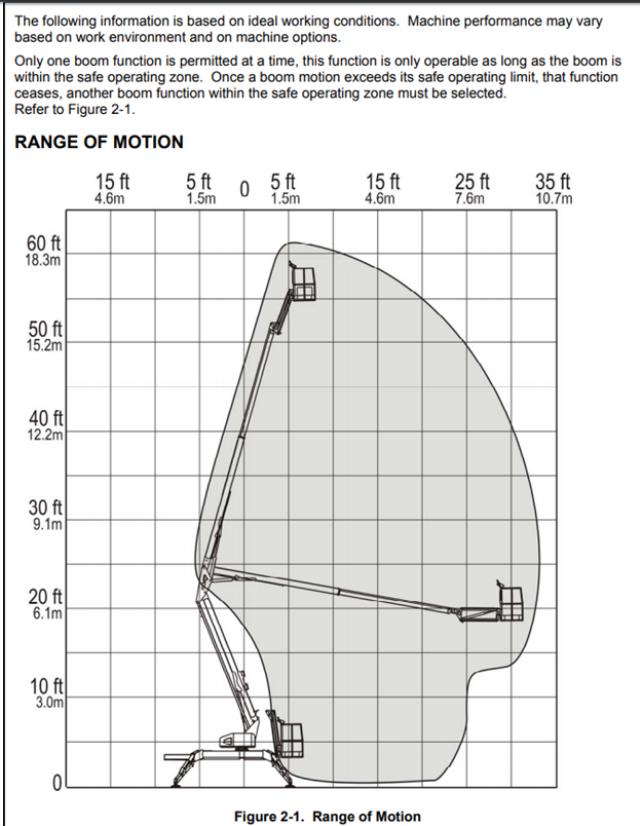

  • Working height 61 ft 3 in
  • Platform height 55 ft 3 in
  • Horizontal outreach (from centerline) 33 ft 5 in
  • Horizontal outreach (from edge of footpad) 27 ft 4 in
  • Up and over height 23 ft 1 in
  • Lift capacity 500 lbs
  • Length - stowed 23 ft 8 in
  • Width stowed 5 ft 7 in
  • Height stowed 6 ft 9 in
  • Platform size 4 ft 1 in x 2 ft 9 in
  • Turntable rotation 350° non-continuous
  • Jib - length 4 ft 3 in
  • Jib - Vertical Motion 150° (+70 / -80)
  • Tow speed rating 65 mph
  • Leveling capability 12.5 °
  • Tire size ST 225/75 R15
  • Power source 4 x 6 V 245 amp-hr
  • Tongue weight (no options) 335 lbs
  • Weight (no options) 4800 lbs
  • Widest Point 14 ft 8 in
  • Widest Point 15 ft
